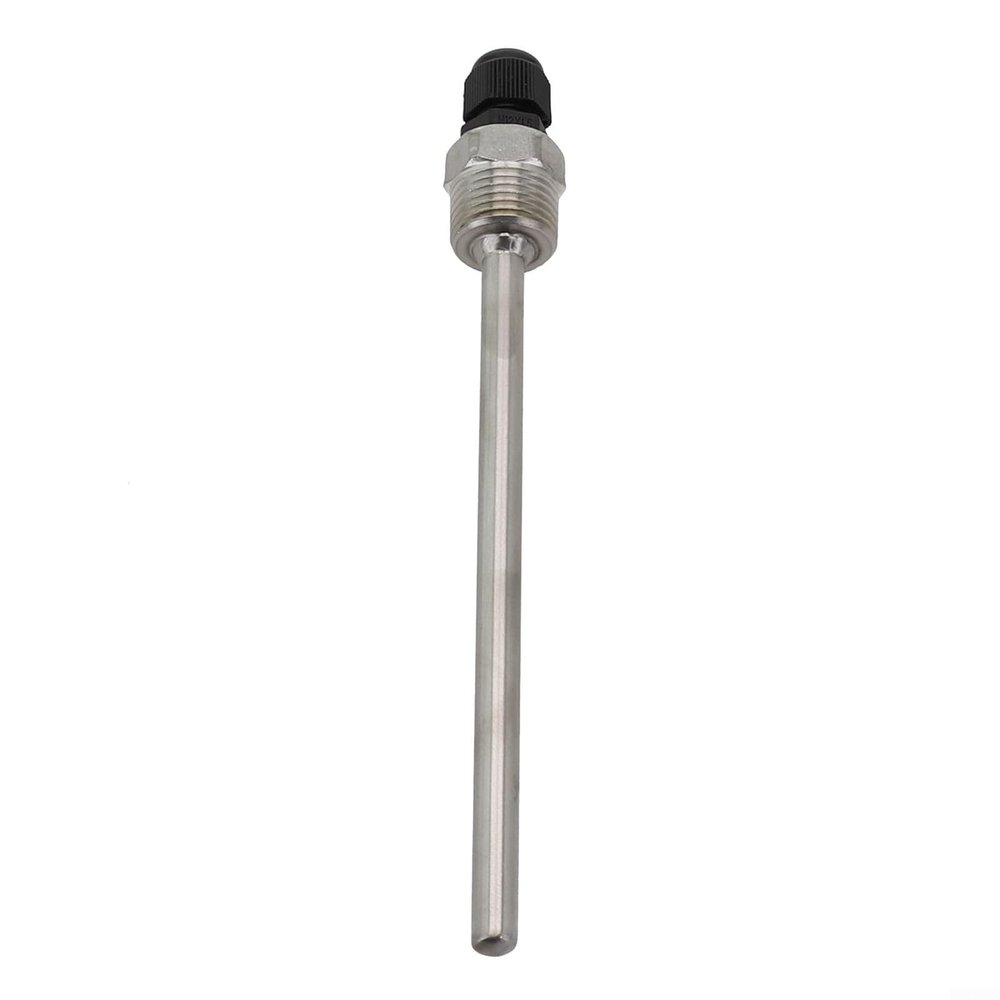

Stainless Steel Thermowell with G1/2 Male Thread 30-200mm Length 6mm ID for Standard For Temperature Probes (500mm)

Description

• [PACKAGE CONTENTS] Package contains one 304 stainless steel thermowell with G1/2 thread ((G) Type 1/2 inch DN15); available lengths from 30mm to 200mm to suit various process depths.
• [ RESISTANT MATERIAL] Constructed from SUS304 to resist common process fluids and repeated exposure, reducing maintenance needs in many industrial settings.
• [PROBE PROTECTION & FIT] 6mm ID accommodates sensors and wires under 6mm while 8mm OD provides a secure fit; design protects instruments from flow erosion and accidental contact.
• [PERFORMANCE SPECIFICATIONS] Suitable for temperatures to 250 for CELSIUS and pressures to 2 MPa; nylon section rated at 80 for CELSIUS normally and up to 100 for CELSIUS for short periods.
• [PURCHASE GUIDANCE] Before ordering, verify your sensor diameter and confirm your system uses 1/2 inch male pipe thread; choose the insertion length that matches your measurement point.

Features:
*Made of materials,
*, and long service life
*No bubbles, no pinhole and other blemishes
*The inlet accepts 1/2 inch male pipe thread
*A quick fit thermowell protects your thermometer from possible damage

Specifications:
Thread:for BSP(G) Type 1/2" DN15
inner diameter: 6mm
outer diameter: 8mm
sensor line with a diameter of under 6mm can be installed
Max Temperature:250 celsius
Max Pressure:2Mpa
Tube length (L)):30mm / 50mm / 100mm / 150mm / 200mm
Material: SUS304
Max Temperature of Nylon part: 80 centigrade, short time 100 centigrade

Package Contents:
1* Thermowell
